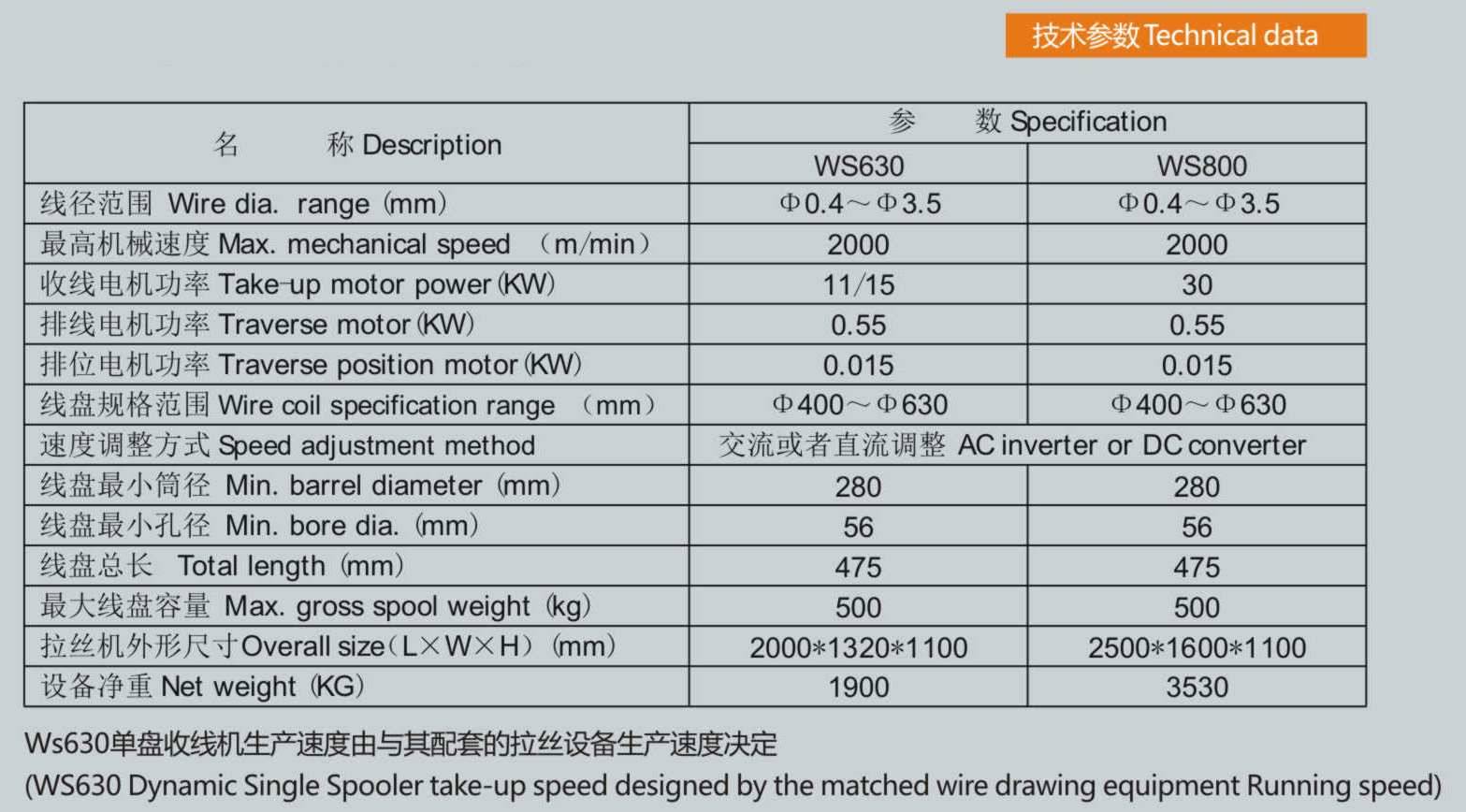

Dynamic Sinale Spooler

Advantagese：

● compact designe

● loading and unloading with Compressed air spool lifting table

● Hydraulic disc brake

● Travers speed control by inverter

● Double spool lock structure

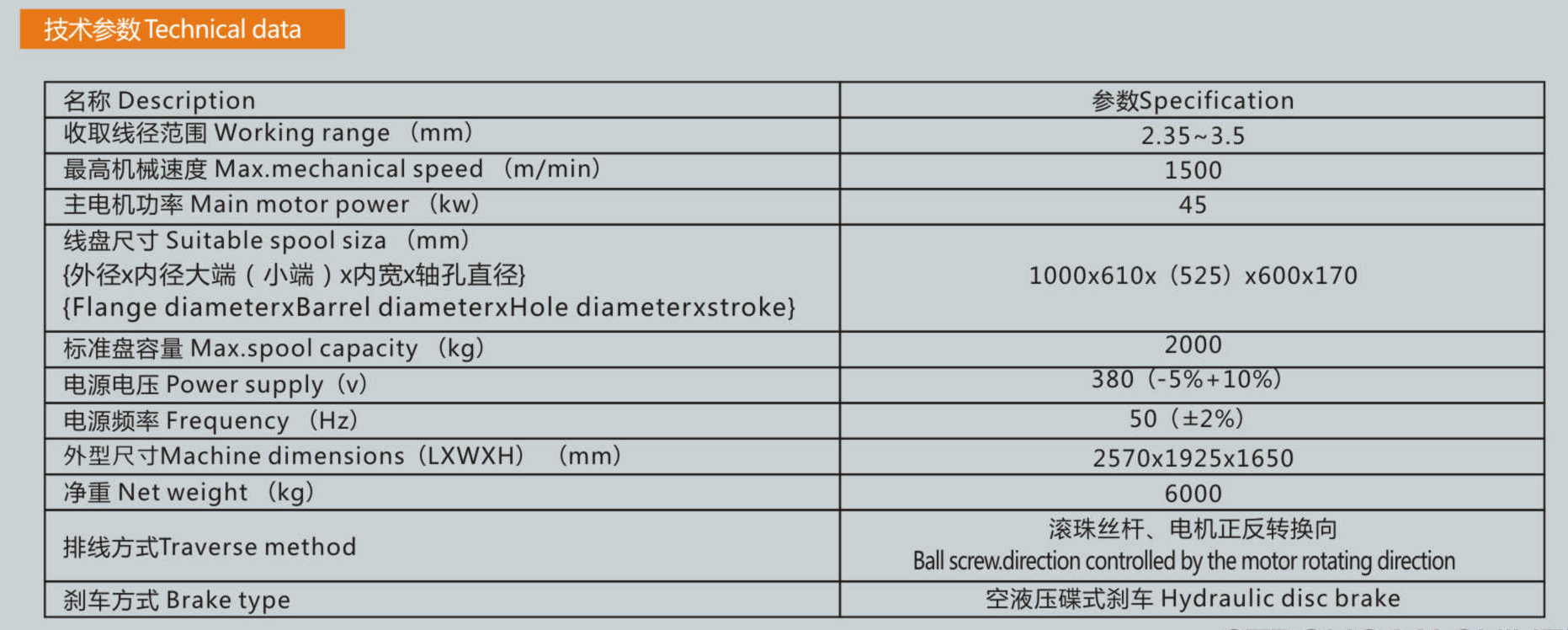

WS1000 Compact spooler

Advantagese：

● The emergency stop swith on the control panel，the safety protection swith and brake system on the protection cover can be connected the safety of production process

● The main unit is driven by 45kw DC motore

● The traverse system is precision ball screw shaft traverse is driven by AC servo motor with positive&reverse rotation and performs direction change back and forth on the beeline guide track the pitch can be adjusted through automatic tracking. and the stroke of traverse is adjusted through the driving of screw shaft by micro-motor. the shape of traverse is double conne

● The mounting of spool chuck adopts full hydraulic controle

● The brake is hydraulic butterfly brake

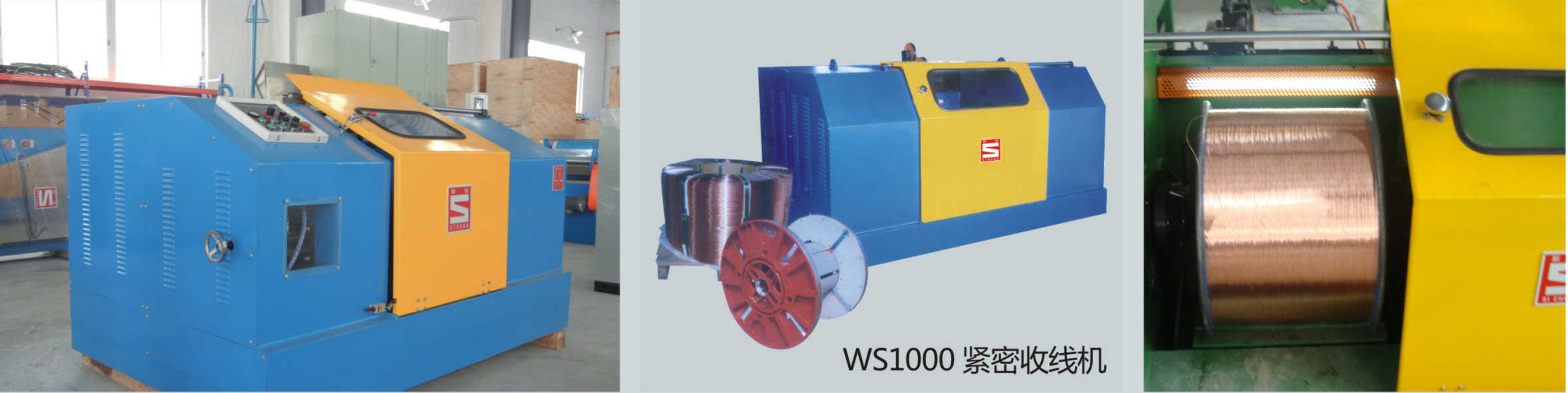

WS 1000 is a comac packing type of winding machine, which is suitable for RBD machine or other payoff device
